Distillation Overhead Assembly

Distillation Overhead Assembly
Distillation Overhead Assembly
Send Inquiry
Product Code : 03
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description

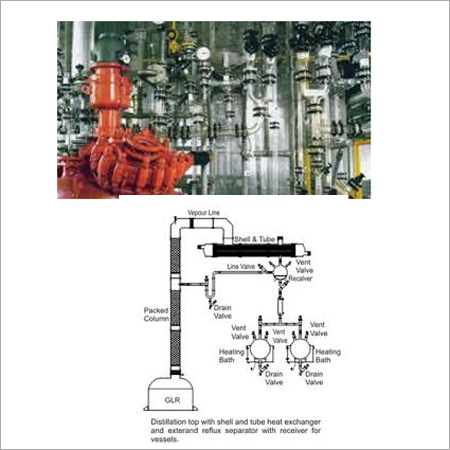

For a distillation overhead assembly on GLR the design and features of which are built according to customer requirements. Glass lined reactors are used instead of glass reactors specially when scale of operation is very large and high pressure Steam or Hot THERMIC Fluid are to be used as heating media. Quite often assemblies like simple distillation units, fractional distillation units or azeotropic distillation units etc. are installed above glass lined reactors. The basic features of these assemblies remains the same but glass shell and tube heat exchangers are preferred due to large scale operation and heat exchanger of large Heat Transfer Area is required. The standard Over Head Glass Assemblies for GLR are mainly designed for processes under Reflux and Distillation and can be run under  full vacuum too.

Standard Process Equipments are :

  1. Both Spherical / Cylindrical Graduated Addition Vessels for liquid reactant addition under controlled conditions.

  2. Vapour Column Hollow or Packed.

  3. Primary Condenser Coil Type Glass Heat Exchanger or Shell & Tube Type Heat Exchanger.

  4. Secondary or Vent Condenser.

  5. Product Cooler - for distillate cooling.

  6. Phase Separators for Azeotropic Distillation or Multi Component Distillation.

  7. Distillate Receivers for continuous operation without break in vacuum.

  8. Pressure equalization by designing process pipeline in such a way that a single point application of vacuum over the entire system is made possible.
