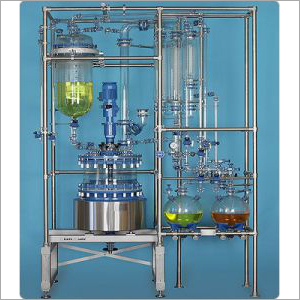

Gmp Model Assembly

Gmp Model Assembly
Gmp Model Assembly
Send Inquiry
Product Code : 03
Product Description

Gmp Model Assembly or GMP model jacketed reaction systems is a two components systems like top cover and vessel. It is designed to Keep L/D RATIO within standard limits for ease of up scaling & down sacling. Due to its two component systems, this assembly can be designed for maximum sweep for economic mixing & turbulence with low vortex by very effective second stage PBT. Moreover, our Gmp Model Assembly is appreciated for its features like maximum Thermal Shock Resistance [1200 C] and  Full Vacuum to 0.5 bar[g].

  • GMP  MODEL  Jacketed  Reaction  Systems  are  Two  Component  Systems  i.e. Vessel  and  Top  Cover  in  following  combinations  :
  • All  Glass  Double  Wall [Jacketed]  Reaction  System.
  • Glass  Reactor  with  Steel  Jacket  and  Glass  Top  Reaction  System.
  • Glass  Lined  Bottom  Pan  and  Glass  Top  and  Glass Over  Head  Assembly.
  • All  Steel  Construction  Reaction  System.
  • GLR  with  Glass  Distillation  Over  Head  Assembly.
  • All  Glass  Triple  Wall [Double  Jacketed]  Reaction  System
  • All  our  Reaction  Systems  are  Designed  to  Keep  L/D  RATIO  within  standard  limits  for  ease  of  UPSCALING  and  DOWN  SACLING.

Agitators  of  these  systems,  because  of  being  two  component  systems,  can  be  designed  for  maximum  sweep  for  efficient  mixing  and  turbulence  with  minimum  vortex  by  very  effective  second  stage  PBT [Pitched  Blade  Agitator].


  • - 80 0 C  to  + 2000 C
  • Full  Vacuum  to  0.5 bar[g]
  • Maximum  Thermal  Shock  Resistance [1200 C]
  • Over  17  Years  of  Blowing  Experience - acknowledged  by  our  esteemed  customers.
  • Spiral  PTFE  Baffle  in  the  Jacket - Reactor  Space  for  high  Heat  Transfer  Area  Utilization
  • No  Dead  Volume.
