Reaction Distillation Units
REACTION DISTILLATION UNIT

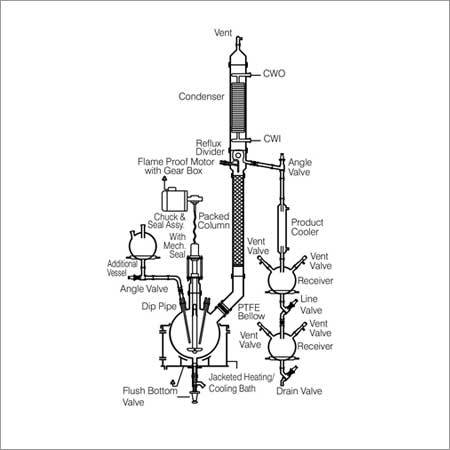

The unit has been designed to suit the customers requirement of combination of versatile reaction / distillation for pilot plant and other works.The unit has flexibility of working at atmospheric pressure as well as under vacuum. Typical unit has a reaction vessel fitted in a metal heating/cooling bath having facility for heating and cooling by means of heating/cooling fluid media. The standard system is equipped with stirrer having mechanical seal, a packed column on the side neck of the vessel, reflux divider, coil type condenser and receiver system with product cooler, vent, drain and provision for vacuum. Option of speed variation by mechanical or electronic means can be provided.
The above unit is available in 10Ltr, 20Ltr, 50Ltr, 100Ltr, 200Ltr, & 300Ltr, capacity with spherical and Cylindrical Flasks.
Optional items :
Heating mantle instead of jacketed heating / cooling bath.
Simple drain valve instead of flush bottom valve.
MS PTFE lined stirrer drive instead of glass stirrer.
Variable frequency drive for variable speed.
Cylindrical vessel instead of spherical vessel.
